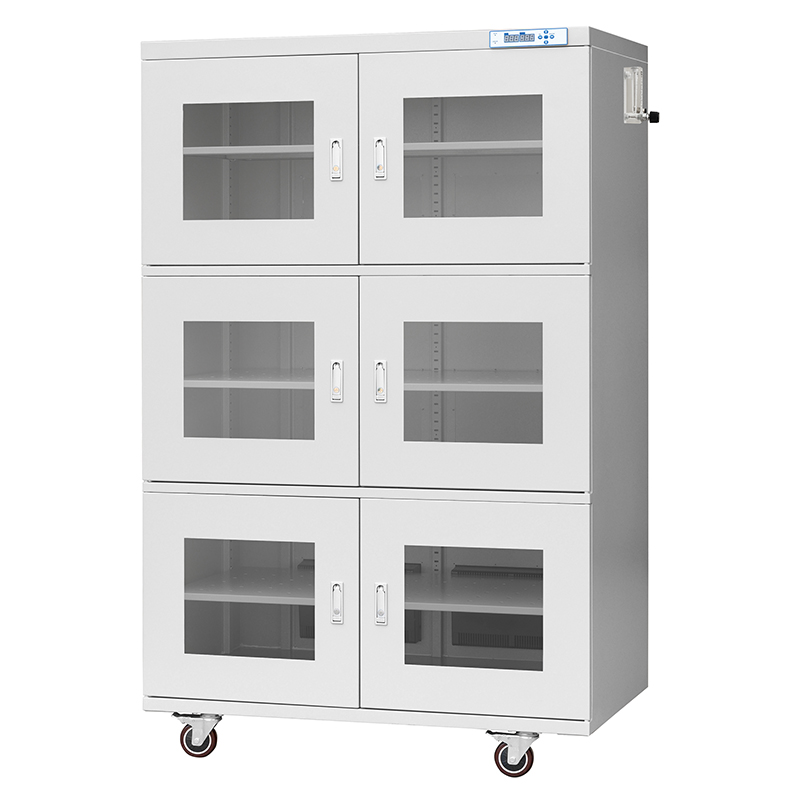

Classic model（white ）
|
Antistatic model（Blue-black）
|
Outline dimension（mm）W*D*H
|
Inside dimension（mm）W*D*H
|
Moisture control range
|
Number of shelves
|
|
MGD1500SD
|
MGD1500STD
|
1200*710*1910
|
1198*682*1723
|
1%~60%（tunable ）
|
5
|
Function introduction:
1) The cabinet material and partition are made of high-quality cold-rolled steel plate with a thickness of 1.2mm, and important parts are made of 3mm material
2) The door is inlaid with 3.2mm tempered glass
3) The cabinet and partition surface adopts an electrostatic powder spraying process consisting of 13 processes. The surface coating is guaranteed to be used for more than 15 years, and the powder raw material adopts the American DuPont brand. The surface coating has passed the ROHS environmental protection test and passed the CE certification. The surface resistance is 10^5~10^9 ohms. The anti-static effect of this surface treatment is permanent. The color is blue-black. The standard parts of the cabinet are all stainless steel standard parts. The cabinet spray 5% salt spray test can reach 500 hours (national standard 48 hours), with strong corrosion resistance.
4) The integrated design of the flat pressurized handle lock has an anti-theft function. The removable casters with brakes are easy to move and fix.
5) Digital display of temperature and humidity, temperature and humidity are displayed separately, without switching.
6) The humidity sensor uses the Swiss imported SENSIRION low drift sensor. The humidity display error is within ±3%RH. The sensor is digital. It has the function of automatic equipment fault tracking and panel sleep function.
7) Temperature error ±1℃. The humidity display range is 0.1~99.9%RH, and the temperature display range is -20℃~99.9℃.
8) The digital tube is a high-brightness Taiwanese digital tube. At the same time, the design adopts a special lighting technology, which not only ensures the brightness, but also saves 60% of the display power. It meets the current low-carbon economic requirements.
9) The humidity display part has a calibration adjustment device to facilitate the customer's annual inspection of the equipment in the future, and to restore the display with excessive deviation to the normal value. It is also convenient for customers to conduct daily inspections and adjustments.
10) The product has passed ROHS environmental protection certification, CE certification, and multiple invention patents.
11) Crystal explosion-proof flowmeter.
12) Humidity 1~60%RH can be set. When the humidity reaches the set value, the system automatically cuts off the nitrogen, and vice versa, it automatically opens the nitrogen.
13) The solenoid valve is a Japanese SMC brand.
14) Nitrogen distribution system to ensure uniform nitrogen distribution in the box.
Product use:
1. Dehumidification and low humidity storage of IC (CSP, BGA, TQFP, TSOP) at room temperature before surface mounting (SMT);
2. Dehumidification storage of printed circuit boards and multi-layer substrates before lamination (pressing substrates) and low humidity storage of pattern films and prepregs;
3. Low humidity storage of semi-finished products in various electronic installations and oxidation prevention and low humidity storage between the front and back processes in the installation process;
4. Bare IC and LSI (bare chip) lead frame used before COB installation Low humidity storage;
5. Low humidity storage of room temperature drying (maintaining dehydration uniformity) of the glass substrate of the liquid crystal display (LCD) after cleaning;
6. Room temperature dehumidification and low humidity storage of solid state display pixels (CCD);
7. Room temperature dehumidification and low humidity storage of materials and semi-finished products in various precision manufacturing industries.
8. Dehumidification and storage of R&D/laboratory reagents (agents), standard products, test pieces, pure metal materials, powder materials (fine ceramics, epoxy resins, drugs, adhesives), filter paper, and precision measuring tools.
