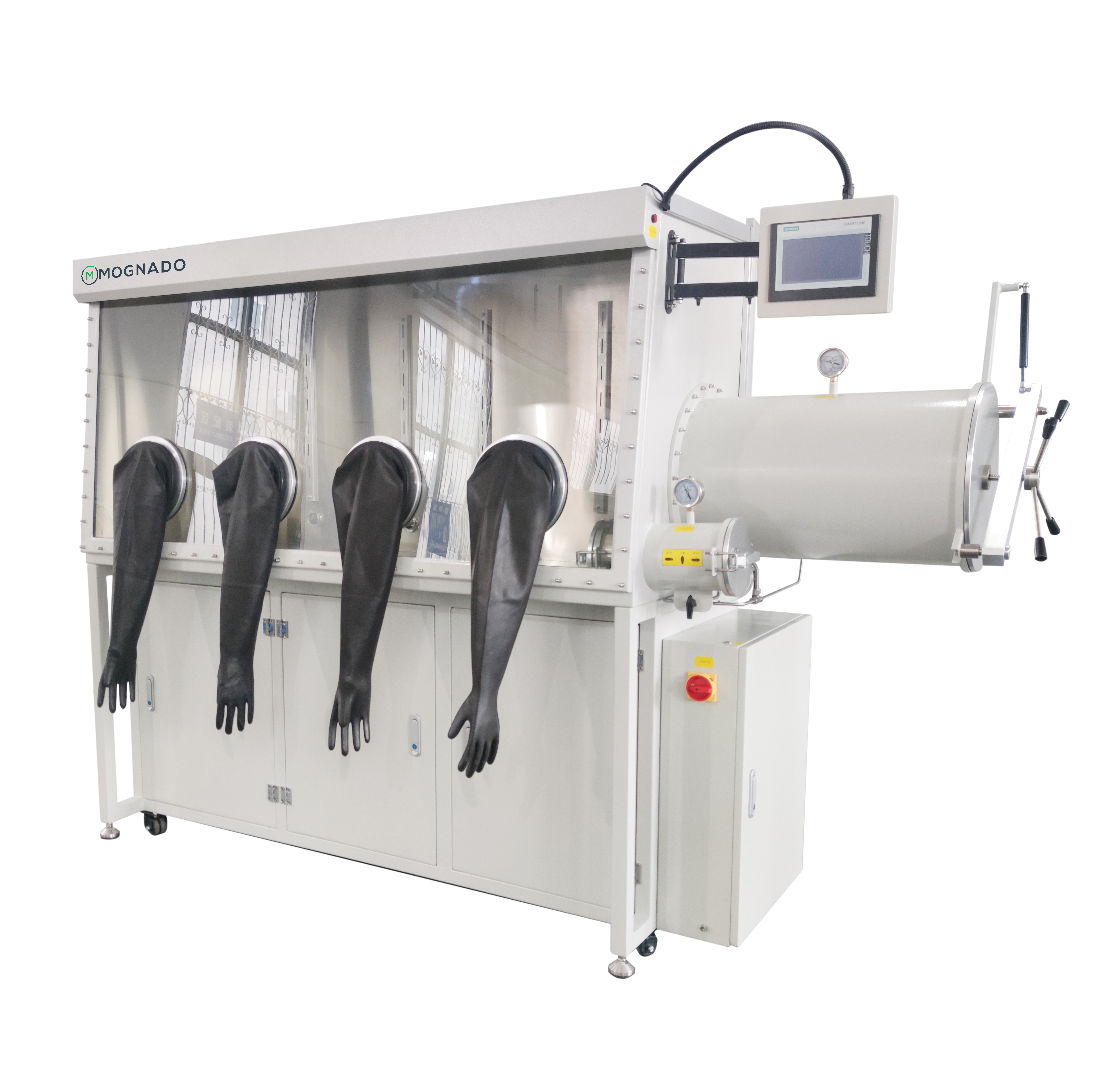

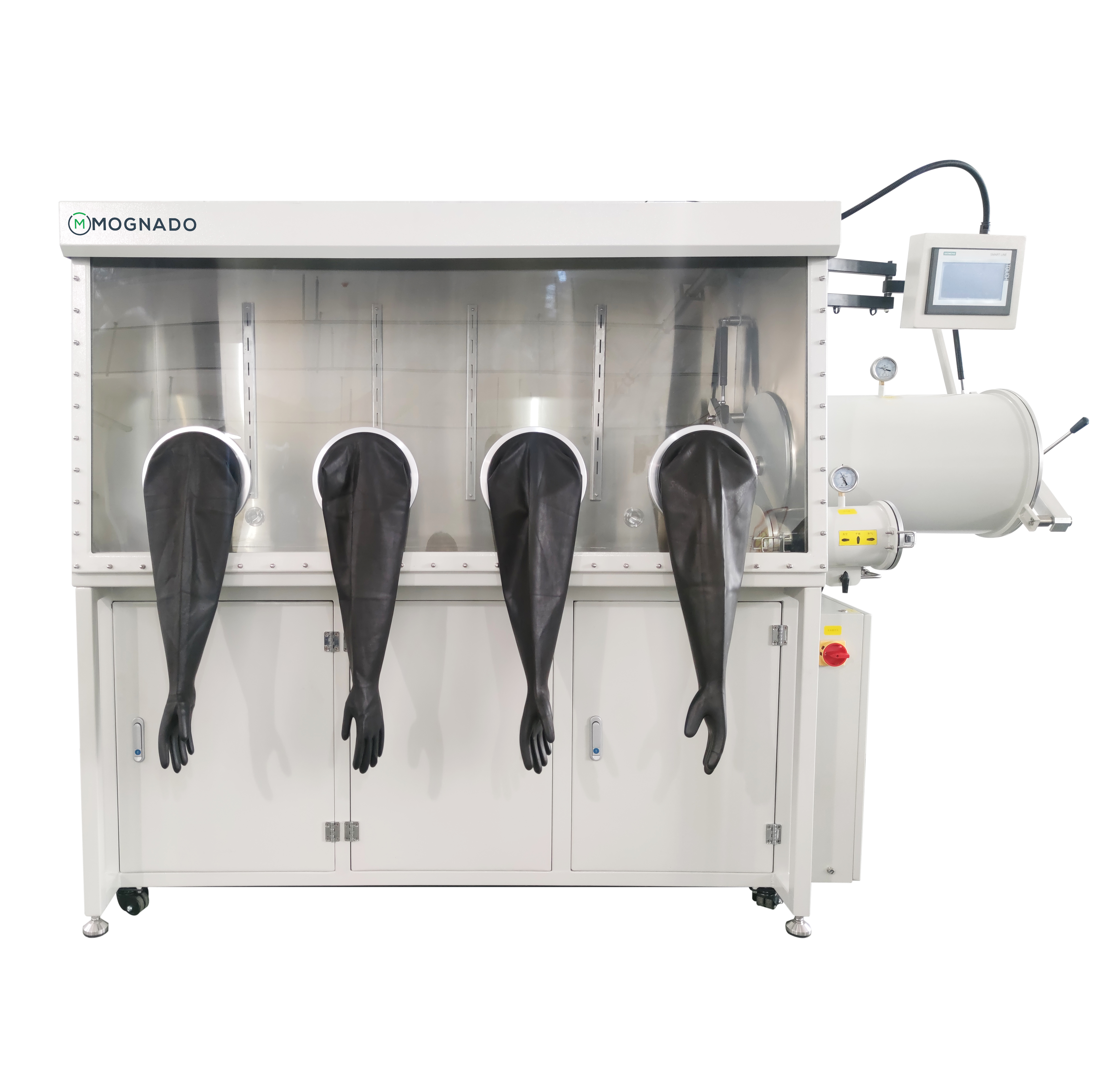

The glove box is designed with a closed loop to save operating costs. Under standard conditions, with a constant temperature of 20oC and a standard atmospheric pressure of 99 999% inert gas source, with water and oxygen indicators all below 1 ppm. The purification column will adsorb and saturate after a certain period of circulation, and can be regenerated and reused
Parameter Details：The glove box forms a system
Box
Box
Material: SUS304 Stainless steel, thickness 3mm
Outer surface: SUS304 Stainless steel / SUS316 Stainless steel (white spray)
Inner surface: oil film drawing (optional: electrolytic polishing)
Length：1800mm Depth：750mm High：900mm
Window
Skylight: transparent tempered safety glass, thickness 8mm (optional: polycarbonate glass)
Gloves
The material is aluminum alloy (optional: POM/stainless steel), O-ring seal
Gloves
Butyl rubber: thickness 0.4mm, diameter 7 "or 8" (optional latex, chloroprene gloves)
Filter
Specifications: 0.3μm, one gas inlet and one gas outlet
Luggage carrier
Material: SUS304 Stainless steel material, built-in 2 layers, height adjustable
Box lighting
Location: LED lamp, installed in the lampshade
Transitive Cabin
The Great Transit Cabin
Transit compartment
Size: diameter 380mm, length 600mm (can be made according to non-standard size)
Material: SUS304 Stainless steel
Surface: the inner surface is oil film drawing surface, the outer surface is spray paint
Appendix
Pallet: Sliding pallet
Door: double door, anodized aluminum material, thickness 10mm vertical operation, with lifting structure pressure gauge: simulated display
Control operation
PLC Control or manual operation
Small transit cabin
Transit compartment
Size: diameter 150mm, length 300mm (can be made according to non-standard size)
Material: SUS304 Stainless steel
Surface: the inner surface is oil film drawing surface, and the outer surface is spray paint
Appendix
Door: double door Pressure gauge: analog display
Control operation
Hand operation
Gas purification system & water analyzer & oxygen analyzer
Decontaminating column
Function: gas sealing, water and oxygen removal Purification column material: SUS304 Stainless steel Cleaning materials: copper catalyst 5kg, molecular sieve 8kg Purification capacity: deoxidation 60L, dehumidification 2kg
Water oxygen index <1ppm
Touch screen PLC control
High degree of automation can realize: automatic control of gas pressure in the box, automatic cleaning of the atmosphere in the box, automatic regeneration of purification materials, automatic recording of system operation data and other operations;
Lyosorption installation
Contains 21L high efficiency activated carbon for solvent adsorption (optional)
Circulatory system
Working gas: nitrogen, argon, helium circulation capacity: integrated fan flow 90m3/h
Revive
Operation: PLC automatic control of regeneration process Regeneration gas: working gas mixed with hydrogen gas (hydrogen 5%-10%)
Valve
Main valve: DN40KF, electric rotary valve control valve: electromagnetic integrated valve
Vacuum pump
Specification: 8m3/h or 16m3/h rotary vane pump: with oil mist filter, gas vibration control (or oil free vacuum pump)
Water analyzer
Measuring range 0～1000ppm, H2O< 1ppm
Oxygen analyzer
Measuring range 0～1000ppm，O2< 1ppm
