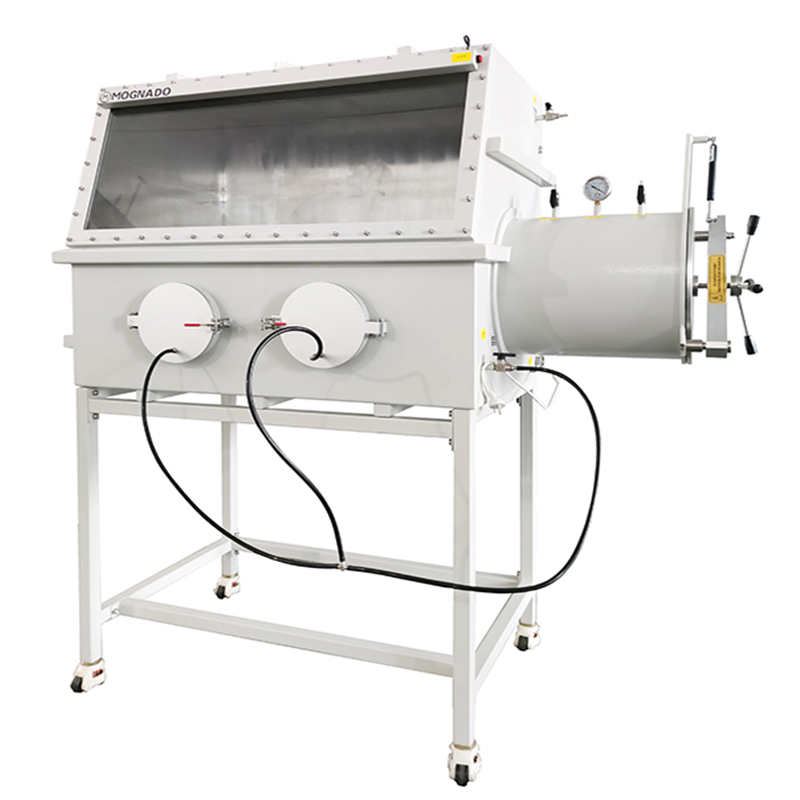

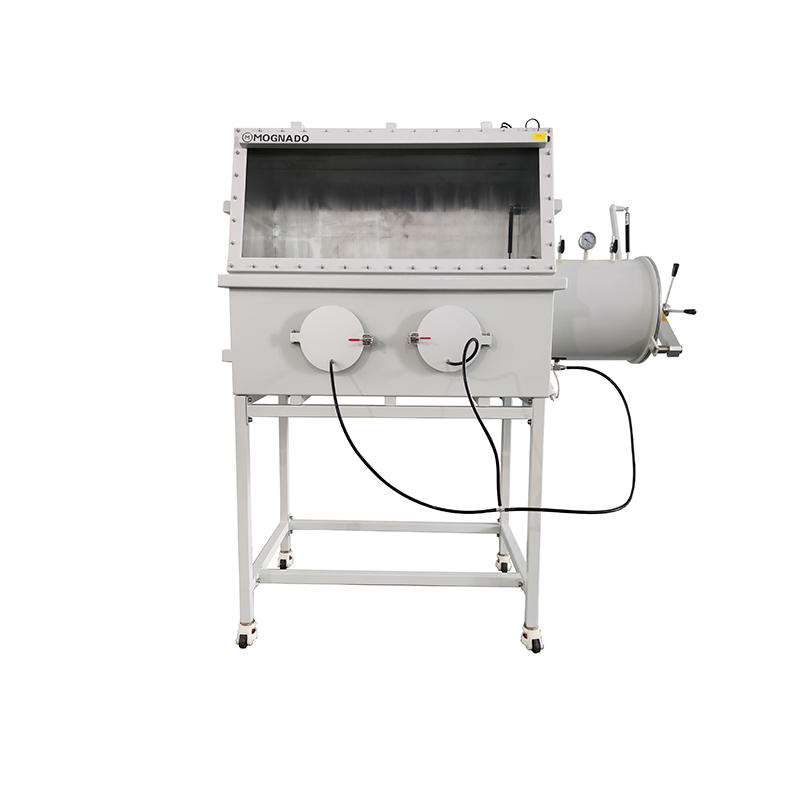

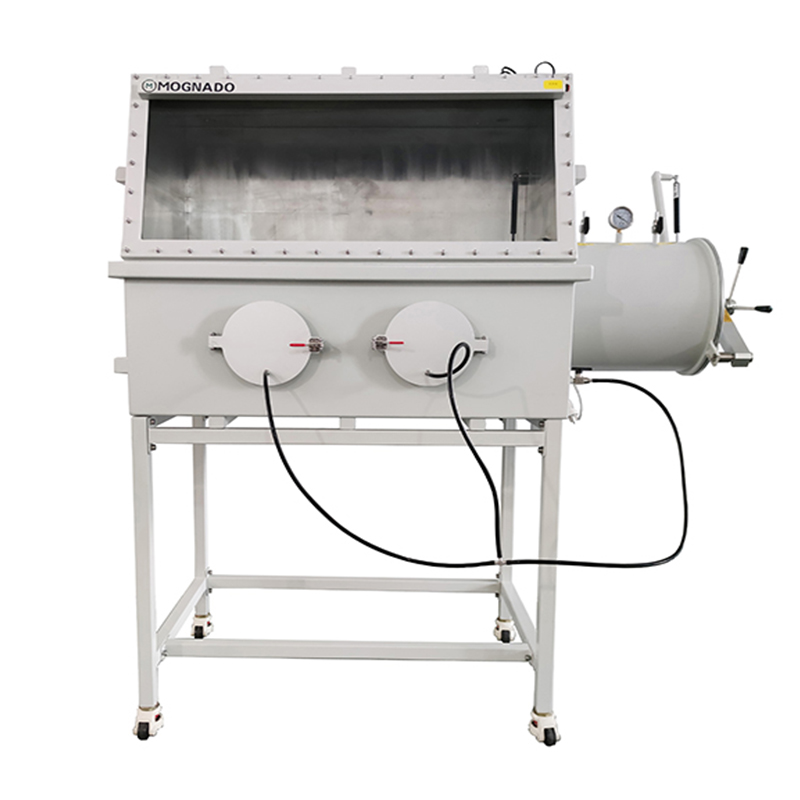

Main features

1.Main box:SUS304 stainless steel, thickness 3mm, inner surface: brushed treatment, outer surface: white spray paint.

2.Window:10mm thick inclined tempered glass, with a wide viewing angle and no blind spots.

3.Ball valve:SUS304 stainless steel ball valve, capable of inlet and outlet water,Some instruments (such as spin coating machines)

can be placed inside the box and evacuated through it.

4.Lighting:No UV white light, installed above each glass window.

5.Power Supply:The box is equipped with multiple power sockets to meet the internal instrument needs of customers.

6.Gloves: The operating hand box adopts industrial grade corrosion-resistant latex or butyl gloves, and the glove mouth is fixed with a sealing ring.

7.Reserved interfaces: Two KF40 interfaces are reserved, and the glove box can be upgraded at any time in the future.

Parameter size details

1.Model:MG-VGB-3

2.Material and Thickness: Stainless steel SUS304 material with a thickness of 3mm is selected.

3.Main box dimensions (mm): 1100W x 720Dx 900H

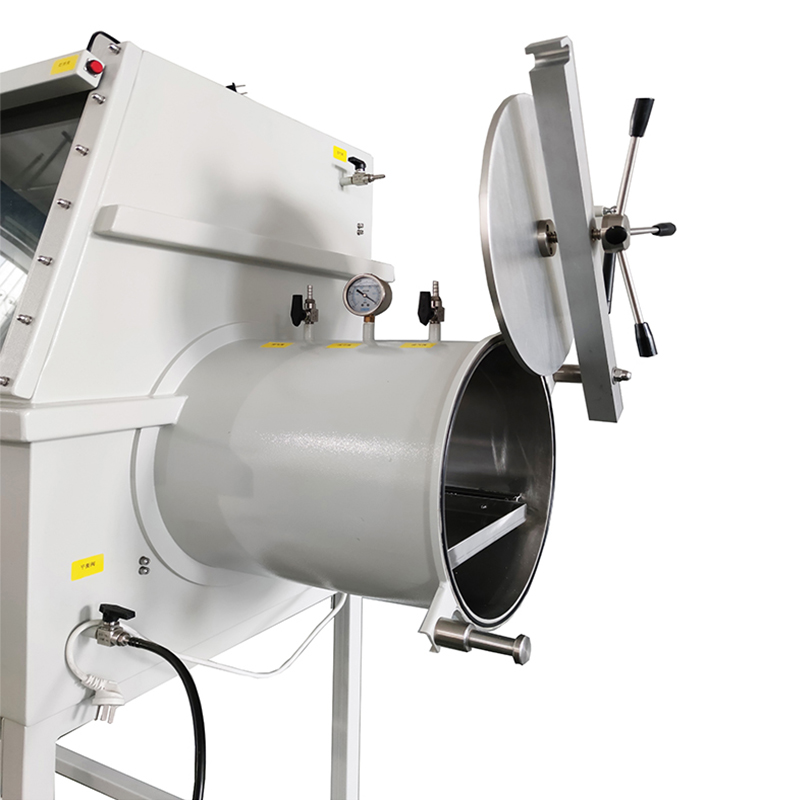

4.Transition cabin size (mm): Ø 380 x 420L

5.Glove mouth size (mm): Ø 190mm

6.Glove material and size (mm): latex gloves  Sleeve diameter 190,  Length 600

7.Number of spare interfaces at the top: 2 sets of KF40 spare interfaces  Equipped with clamps, blind plates, and sealing rings.

8.Vacuum level:- 0.1MPa ~ 0MPa
